  DS300

  PRODUCT-INTRO        TECHNICAL-INFO        ENERGY-GENERATION        DOWNLOAD        FEATURES        APPLICATIONS         INSTALLATIONS

The only hybrid in wind power market

Wind turbine DS300 is a 300-500W power vertical axis small wind turbine that combines in its structure a dual system consisting of Darrieus blades that guarantee high efficiency and Savonius blades, which enable the system to be activated with very low winds. This technology mix makes the Hi-VAWT turbine a highly innovative product: equipped with controllers capable of managing the maximum battery power and direct magnet drive generator. These turbines are built according to the IEC 61400-2 certification, a very important factor for small power generators. Very small dimensions, weighing only 25Kg, quietness, are the features that make this wind turbine the perfect solution for integration with residential photovoltaic systems with 24V battery storage technology.

1,24m DIAMETER

1,06m HEIGHT

25,5Kg WEIGHT

TECHNICAL INFO

Wind turbine DS300 Detailed technical specifications

Number of blades

Type of blades

Generator

Nominal power

Voltage

Wind class

Swept area

Weight

Cut-in wind speed

Nominal speed

Cut-off wind speed

Transmission

Power control

Brake and protection

Controller

Noise

Type of pole

3

4 Savonius & 3 Darrieus

3 phases PMG

300-500W

24V DC

CLASS III IEC 61400-2

0,9m2

25,5Kg

2,2m/s

12,5m/s

15,5m/s

Direct Drive

MPPT

Automatic dump-load & short-circuit brake

24V DC for battery charge

Max. 50dBa

Conical 4-6mt

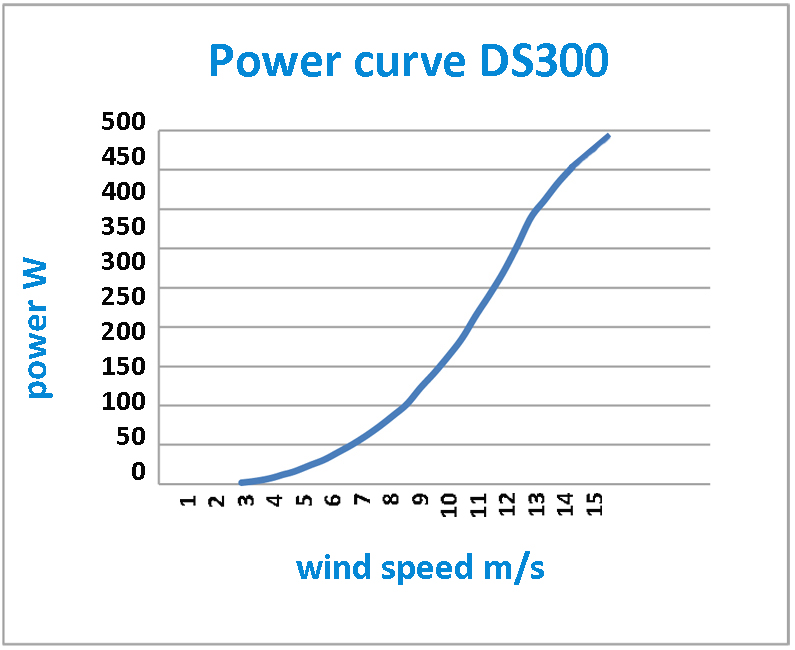

POWER CURVES

Power curve according to IEC 61400-2 certification

Perfect for low winds and efficient for strong winds

The DS300 small wind generator distinguishes itself from the many cheap Chinese products, the numerous turbines made in the laboratory and never tested in open field, thanks to the double rotor, the dumper, the materials used, the Certifications obtained.

MECHANICAL FEATURES

Unique Hybrid Technology

The dual-rotor turbine facilitates starting with wind breeze and exponentially increases power with strong winds up to 15,5/20 m/s. IEC 61400-2 certified in South Korea

  • A: Darrieus blades made of aluminum, with an arc wedge curve, to best distribute the tension force to optimize wind capture and increase energy production.

  • B1: Darrieus blade fastening plate, blade connection has been designed to eliminate the potential for breaks with very strong winds and reduce the possibility of damage to the generator in case of breakage of the blade.

  • B2: Savonius blades, perfect as they are oriented on the four cardinal points to capture wind from any direction, without the need for rotor orientation.

  • B3: Vertical axis of the turbine, built in ASTM type A283 grade D steel (better known as SS400) suitable for working at temperatures of -2o~+40°C.

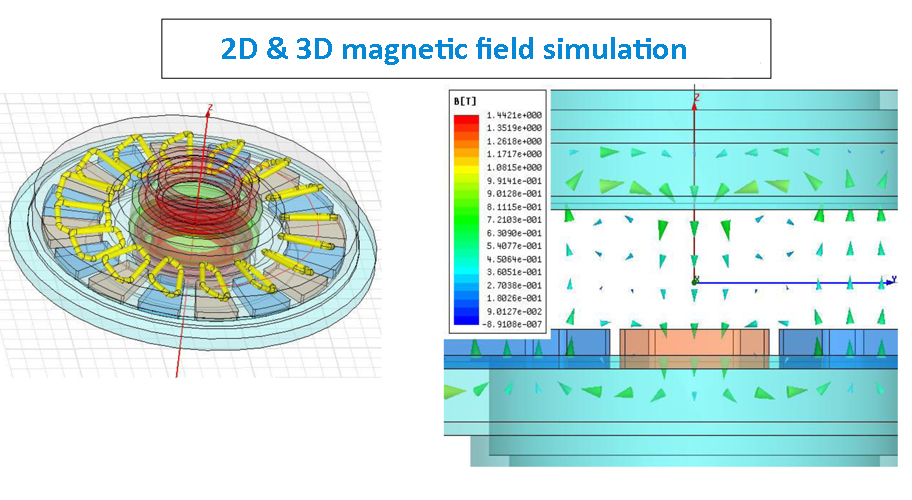

  • B4: Direct drive permanent magnet generator, high performance bearings with resistance to rigid temperatures, a key feature for working with strong constant winds, where mechanical stress is very strong.

  • B5: Darrieus blade fastening plate, blade connection has been designed to eliminate the potential for breaks with very strong winds and reduce the possibility of damage to the generator in case of breakage of the blade.

  • B6: R/S/T three-phase generator cables designed for connection to a battery charger or a grid inverter.

  • B7: Dumper, a fundamental component to minimize the vibration and therefore the noise of the turbine.

  • B8: Overvoltage wire for the manual brake to be welded to the pole with its support “C” shape.

  • C1-2-3-7.1-7.2-8.1: Various screws for Darrieus blade connections, flange of the turbine on pole.

POSSIBLE APPLICATIONS

1 PHASE ON-GRID STORAGE

  • 1: Small wind turbine DS300

  • 2: Wind controller with power curve management, battery charger, protection and braking system

  • 3: Storage box for solar installation able to manage pv, battery pack and grid parallel connection

  • 4: Lead GEL battery pack 2V OPzV model, in alternative Lithium model LiFePO4 with 12V 160Ah

  • 5: Optional electric generator directly connected to the storage box

  • 6: PV modules dicrectly connected to the MPPT pv charger included in the storage box

  • 7: Public grid connection

1 PHASE OFF-GRID STORAGE

  • 1: Small wind turbine DS300

  • 2: Wind controller with power curve management, battery charger, protection and braking system

  • 3: Storage box for solar installation able to manage pv, battery pack and grid parallel connection

  • 4: Lead GEL battery pack 2V OPzV model, in alternative Lithium model LiFePO4 with 12V 160Ah

  • 5: Optional electric generator directly connected to the storage box

  • 6: PV modules dicrectly connected to the MPPT pv charger included in the storage box

INSTALLATIONS SAMPLES

DS300 on wall

Installation of one 300W turbine with wall-mounted architectural structure, the metal structure follows the wing curves of the turbine Darrieus blades for a customized design on request.

DS300 multiple

Installation with three 400W turbines in curved architectural structure, lightweight & low-impact design allows multiple turbines installation on the same tower with less space occupied on the ground.

DS300 on roof

Installation of one 500W turbine in combination with a photovoltaic system due to the impossibility of drilling the roof has been exploited by the reinforced concrete part of the parapet.
